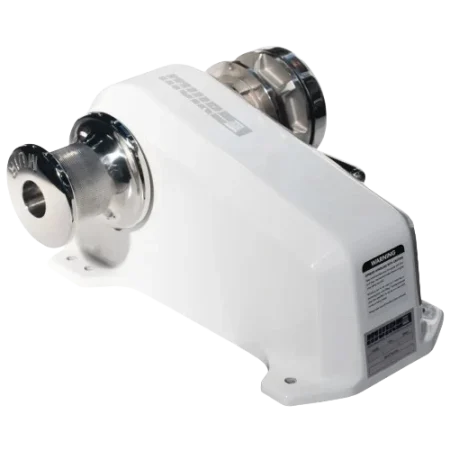

Muir Windlasses Muir HR1600 & HR 2500 Cougar Compact Horizontal Windlass

Model No: H1600 & HR2500
In Stock

MUIR HR Cougar series horizontal windlasses are ideal for installations where the chain box is not easily accessible. These windlasses are completely above deck and have a long-life marine aluminium alloy housing and a powerful high-performance motor with gearbox.

Muir HR1600 & HR 2500 Cougar Compact Horizontal Windlass Anchor Winch

MUIR HR Cougar series horizontal windlasses are ideal for installations where the chain box is not easily accessible. These windlasses are completely above deck and have a long-life marine aluminium alloy housing and a powerful high-performance motor with gearbox. The housing protects the motor and gearbox from the harsh weather.

– Chain only
– Manual Override System
– Gypsy lock/pawl
– Chain pipe & peeler
– Heavy duty dual direction motor in 12 & 24V DC (Hydraulic HR2500 only)
– Durable marine grade white gloss composite housing
– Fully enclosed motor & gearbox
– Independent gypsy and capstan operation
– Luxury chromed marine grade bronze / 316 Stainless steel running gear
– Stainless steel drive shaft
– Cone clutch/brake
– Shaft seal
– Clutch release handle
– Installation/Operation booklet
– Front double twin footings.

Muir HR1600 Cougar Compact Windlass

The Cougar is a highly trusted mid-range model designed for recreational, fishing, and commercial vessels.
  • Vessel Length Suitability: Ideally fits boats from 29 to 42 feet (9 to 13 meters).
  • Power & Performance: Features a 1000W heavy-duty motor available in either 12V or 24V DC configurations.
  • Load Capacity: Delivers a maximum pull/load of 1,200 lbs (545 kg) with a safe working workload of 275 lbs (125 kg).
  • Line Speed: Fast retrieval rates up to 46 feet per minute (14.5 meters/min).
  • Rode Compatibility: Equipped with a combination gypsy capable of handling chain-only setups or rope and chain combinations (typically matching 1/4″ to 3/8″ chain alongside 1/2″ to 5/8″ rope).

Muir HR2500 Cheetah Compact Windlass

The Cheetah is the scaled-up, heavy-duty big brother to the Cougar, engineered for larger boats requiring substantially more hauling power.
  • Vessel Length Suitability: Designed for mid-to-large vessels from 42 to 55 feet (13 to 17 meters).
  • Power & Performance: Upgraded to a beefier 1200W motor (12V or 24V DC).
  • Hydraulic Option: Unlike the smaller HR1600, the HR2500 can be ordered as a hydraulic-driven unit (operating at 1450 PSI / 10MPa) for heavy commercial or continuous-use applications.
  • Load Capacity: More than doubles the hauling capability with a maximum pull of 2,500 lbs (1,136 kg) and a safe working workload of 625 lbs (283 kg).
  • Line Speed: Reaches line speeds up to 48 feet per minute
